Name: Factory Price 2022 New Arrival Power Inverter Rechargeable with a Built-in Charger 10000W DC to AC Power Inverters
Brand: Foshan Mars Solar Technology Co., Ltd.
SKU: M10000
Availability: InStock

Home Products Solar Inverter

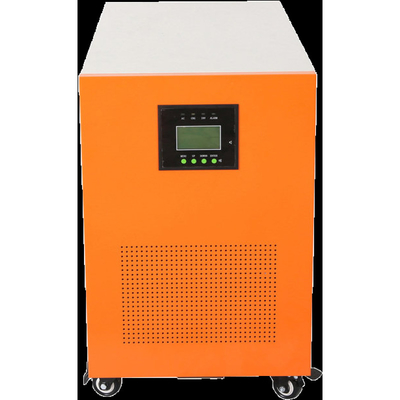

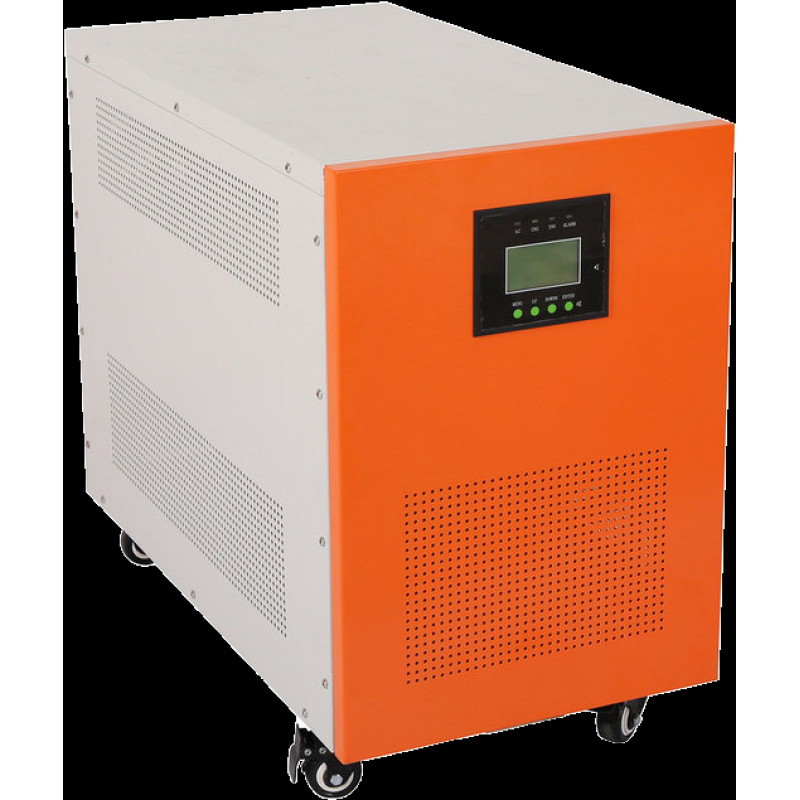

Factory Price 2022 New Arrival Power Inverter Rechargeable with a Built-in Charger 10000W DC to AC Power Inverters

Product Details:

Place of Origin:	China
Brand Name:	Mars
Model Number:	M10000

Contact Now

Detailed Product Description

Output Voltage:	110V~220VAC	Output Current:	5~30A
Output Frequency:	50~60hz	Output Type:	Single Phase
Size:	690370763mm	Type:	DC/AC Inverters
Inverter Efficiency:	90%	Weight:	120KG
Product Name:	Solar Power Inverter	Efficiency:	>90% (85% Resistive Load)
Output Wave:	Pure Sine Wave	Ambient Temperature For Operation:	0-40℃
Ambient Temperature For Storage:	-15-+50℃	Operation/storage Conditions:	0-90% (no Condensation)
External/Packing Dimension:	350220170mm/425245300mm	Warranty:	18months Or 3years Warranty Quantity
Certificate:	CE ROHS

Products Description

Pure sine wave inverter Feature:

Pure sine wave inverter Feature: 1) super wide input voltage: 160V---280VAC; 2) completely controlled by CPU, protect against output short-circuit/overload; 3) optional for charge build-in, charge current is 10A----30A. 4) different DC voltage: 12V, 24V, 36V, 48V, 96V, 110V,192V, 240V for optional. 5) inverter operate with 120% of nominal load during 1 minute ;150% of nominal load during 10s. 6) it can drive inductive loads, such as lightings, TV sets, fans, refrigerators and air-conditioner. 7) When the AC comes, it will start the unit automatically; And when it overload, it will also close .the unit automatically, when you cancel the load, then it will return to work automatically. 8) ATM inverter, RS232 software, SNMP card for optional. 9) 100% import IR American MOS and Mitsubishi IGBT. 10)double protection ,city power &battery working mode for optional.

Production System The production of Inverter PCB uses fully automatic machine.Advanced plug-in technology,Inverter’s stability have increased 30%. QC System Full test system:PCB test / Overload test / Operation test. Packaging System One inverter pack by one carton or plywood box with foam materials,suitable for international shipping. Q:What are the advantage for pure sine wave inverter? A:Pure Sine Wave inverter, which adopts isolated coupling circuit design, high efficiency, high stability of the output waveform, suitable for all kinds of load, can be connected to any common electrical devices and inductive load devices (such as refrigerators, electric drill, etc.) without any interference (eg: buzz and TV noise). The output of pure sine wave inverter is theSame as or better than city power we daily used, because it does not exist grid tie electromagnetic pollution. Q:Why the inductive load need to work with pure sine wave inverter? A:Inductive loads are the application of electromagnetic induction’s principle, produced by high-power electrical products, such as motor type, compressors, relays, fluorescent lamps, electric stove, refrigerator, air conditioner, energy saving lamps, pumps, etc. These products’power are far more than the rated power (about 3-7 times) when start. So only pure sine wave inverter is available to them. Material system： 1.Transformers and capacitors supplier are the NO.1 supplier in power supply area. 2. MOSFET use USA IR brand. 3. Semiconductor Controlled Rectifier use Germany Semikron brand . 4. IGBT use Japan Mitsubishi brand or SanRex brand Production System The production of Inverter PCB uses fully automatic machine.Advanced plug-in technology,Inverter’s stability have increased 30%. QC System Full test system:PCB test / Overload test / Operation test. Packaging System One inverter pack by one carton or plywood box with foam materials.Suitable for international shipping.

Product packaging

Why Choose Us

Why choose to use the MARS Solar?

Solar energy is now the most environmentally friendly energy source in the world. Using the MARS solar system can reduce your
electricity bill by 90%.
We have 10years experience in solar products,we have exported to more than 100 countries and regions.
We have professional installation team. if necessary,we can send engineer to your country, guide the installation.
We have our own factory, use USA and Japan brand power materials,perfectly for quality control.
We have developed some agent, convenience to provide after sale service to customer

FAQ

Q:Are you factory or trading company?
A:We have 3000 sqm modern factory.with 4 production lines.We have 40 factory workers and 5 of them are quality control and
engineer guys.Welcome to visit our factory.

Q:How long is the lead time of orders?
A:Goods can be ready for shipment within 7-15 working days upon payment.If we have stock material.It only take 1-2days tu send
goods.

Q:What's the warranty of products?
A:Suggest buy all system from our factory, solar panel have 10 years warranty ,other parts
all have 2 years warranty;During the warranty, will ship the free parts for service ,we promise our quality.

Q:Can we get support if we have our owm market position?
A:Please inform us your details market demand we will discuss and propose helpful suggestion for you to find the best solution for
you.

Q:What is your trade Assurance?
A:100% product quality protection.
100% product on time shipment protection.
100% payment protection for your covered amount.

Q:Can I install it myself?
A:We provide installation drawing and user manual for you,guide the installation.If necessary,we can send our engineer come to
country,and guide the installation.

Q:How to calculate the freight?
A:We will calculate according to the specific location and transportation method, you can discuss it in detail with us.

If you have any other questions, please send an inquiry to contact us!
