Name: Solar Energy Panels 550 Watts High Efficient Mono Photovoltaic 540W 550W 560W Black Solar Panels
Brand: Foshan Mars Solar Technology Co., Ltd.
SKU: AB
Availability: InStock

Home Products Solar Panel

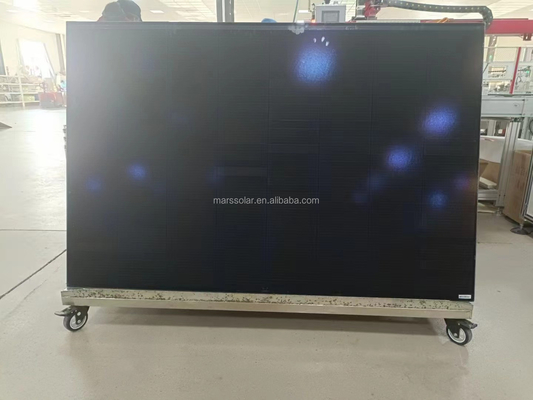

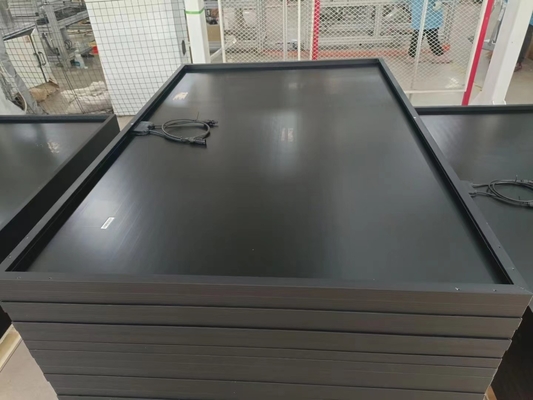

Solar Energy Panels 550 Watts High Efficient Mono Photovoltaic 540W 550W 560W Black Solar Panels

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	Mars or OEM/ODM
Model Number:	AB

Contact Now

Detailed Product Description

Cell Size:	182mmx182mm	Type:	PERC, Half Cell, All Black
Panel Dimensions:	1723mm1134mm35mm	Panel Efficiency:	22%
Product Name:	Sola Panel	Product:	All Black Solar Panel
Open-circuit Voltage:	36V Or 43.2V	Frame Color:	White Or Black
Application:	Solar Energy System	Module Efficiency:	22%
Max Power Voltage:	17.2V-35.2V	Max.System Voltage:	1000V
Warranty:	20YEARS	Certificate:	CE ROHS TUV

The efficiency can reach 21.4%

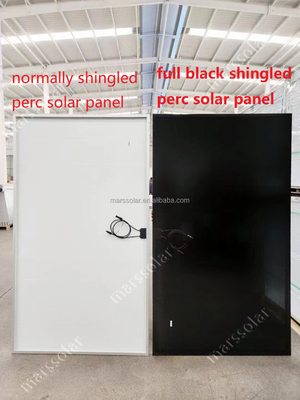

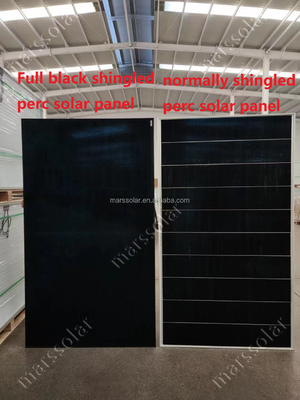

Shingled string welding process, beautiful and neat

Customizable size and power

Maximum power at STC（Pmax）	400W	405W	410W	415W	420W
Optimum operating voltage（Vmp）	37.78V	37.82V	38.31V	38.32V	38.44V
Optimum operating current（Imp）	10.59A	10.72A	10.71A	10.83A	10.93A
Open-circuit voltage（Voc）	43.50V	43.58V	43.61A	43.66V	43.68V
Short-circuit current（Isc）	11.33A	11.43A	11.44A	11.53A	11.54A

Maximum power at STC（Pmax）	540W	545W	550W	555W	560W
Optimum operating voltage（Vmp）	39.42V	39.450V	39.49V	39.502V	39.520V
Optimum operating current（Imp）	13.774A	13.815A	13.942A	14.05A	14.17A
Open-circuit voltage（Voc）	48.08V	48.08V	48.077A	48.081V	48.09V
Short-circuit current（Isc）	14.543A	14.657A	14.672A	14.690A	14.72A

Short-circuit current temperature coefficient （0.065±0.015）%/℃
Open-circuit voltage temperature coefficient -（80±10）mV/℃
Peak power temperature coefficient -（0.5±0.05）%/℃
NOCT (Air 20℃; Sun 0.8kW/m wind 1m/s) 47±2℃
Operating temperature -40℃ to 85℃
Maximum system voltage 1000V DC
Power tolerance ±3%

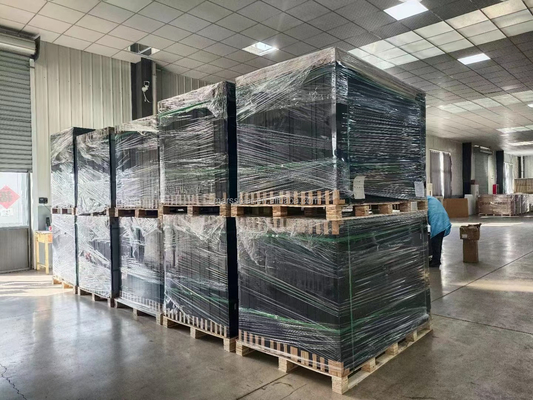

Product packaging

Why Choose Us

Why choose to use the MARS Solar?

Why Choose Mars Solar?

1.We have professional photovoltaic partners in 120+ countries.

2.Overseas warehouses in US to provide more convenient and efficient services.

3.Complete certifications and competitive prices.

4.Won five-star praise from customers.

Contact us for more information and look forward to cooperating with you!

FAQ

Q:Are you factory or trading company?
A:We have 3000 sqm modern factory.with 4 production lines.We have 40 factory workers and 5 of them are quality control and
engineer guys.Welcome to visit our factory.

Q:How long is the lead time of orders?
A:Goods can be ready for shipment within 7-15 working days upon payment.If we have stock material.It only take 1-2days tu send
goods.

Q:What's the warranty of products?
A:Suggest buy all system from our factory, solar panel have 10 years warranty ,other parts
all have 2 years warranty;During the warranty, will ship the free parts for service ,we promise our quality.

Q:Can we get support if we have our owm market position?
A:Please inform us your details market demand we will discuss and propose helpful suggestion for you to find the best solution for
you.

Q:What is your trade Assurance?
A:100% product quality protection.
100% product on time shipment protection.
100% payment protection for your covered amount.

Q:Can I install it myself?
A:We provide installation drawing and user manual for you,guide the installation.If necessary,we can send our engineer come to
country,and guide the installation.

Q:How to calculate the freight?
A:We will calculate according to the specific location and transportation method, you can discuss it in detail with us.

If you have any other questions, please send an inquiry to contact us!

Contact Details

Foshan Mars Solar Technology Co., Ltd.
